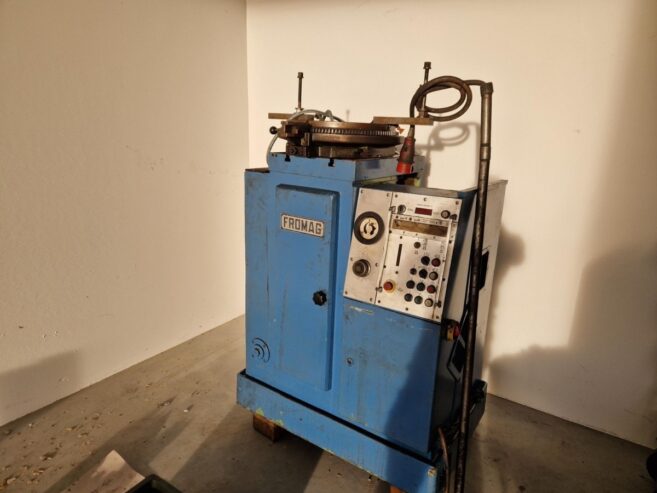

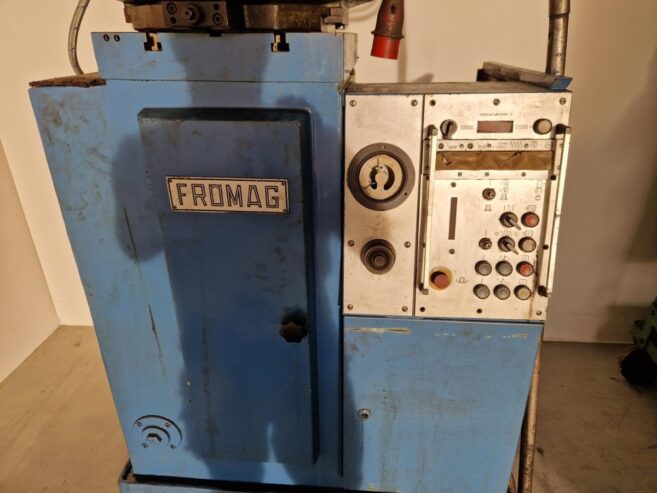

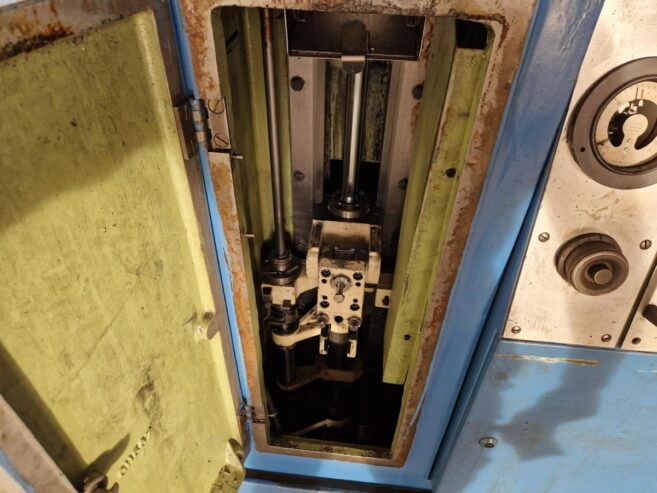

Keyway Broaching Machine
Overview
- Category: Other metalworking machines
- Brands: Other brands
- Models: FROMAG
- Sub Model: Rapida RAD 63/425
- Year of manufacture: 1979
Description
Machine-Details
| Stock-No. | 2077-60003 |
| Type of machine | Keyway Broaching Machine |

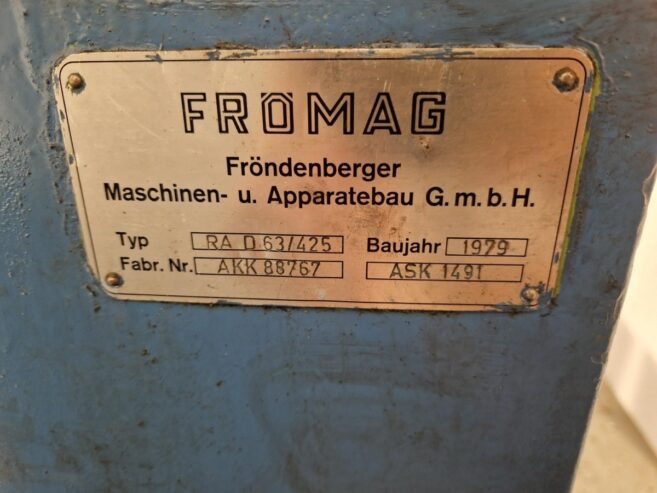

| Make | FRÖMAG |
| Type | Rapida RAD 63/425 |
| Year of manufacture | 1979 |

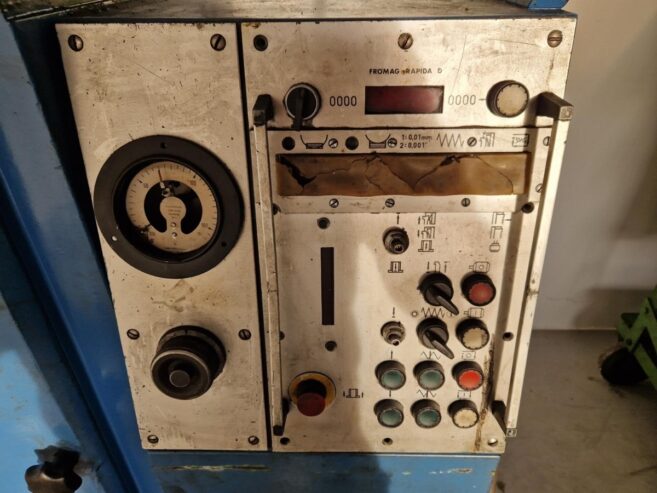

| Type of control | NC |
| Storage location | Ab Standort |
| Country of origin | |
| Delivery time | immediately |
| Freight basis | ex Warehouse |
Features:
- Technical details
- groove width 3 - 63 mm
- drawing length 425 mm
- pulling force - max. 3 t
- table surface area 690 x 460 mm
- bore range:diameter 13 - 400 mm
- cutting speed 2 - 22 m/min
- return speed 50 mm/min
- feed 0,008 - 0,174 m/min
- Control /
- total power requirement 4 kW
- weight of the machine ca. 2,5 t
- Additional information
- Automatic feed 0.01 - 22mm

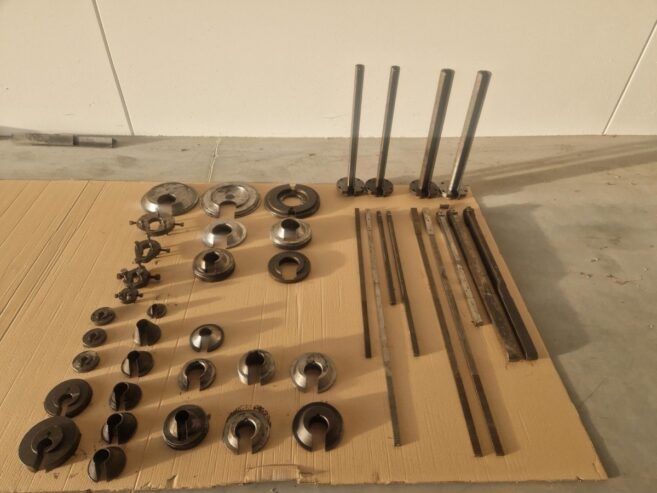

- Accessories:

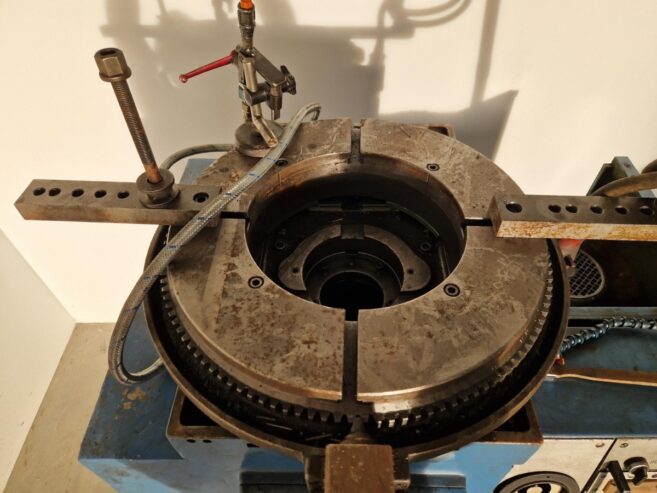

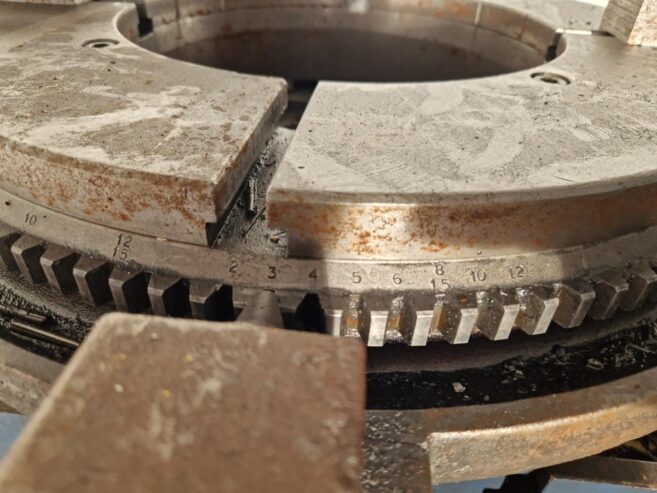

- Dividing head
- Drawing knives size 32, 27, 25, 16, 12 mm
- 2x guide rods 32, 22 mm
- 2x feed rods
