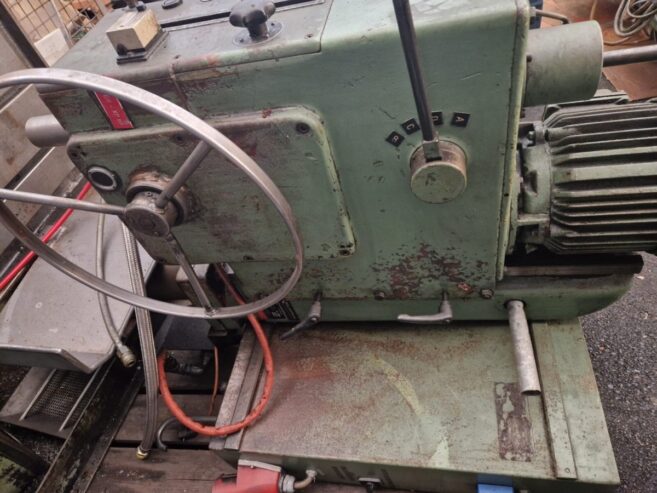

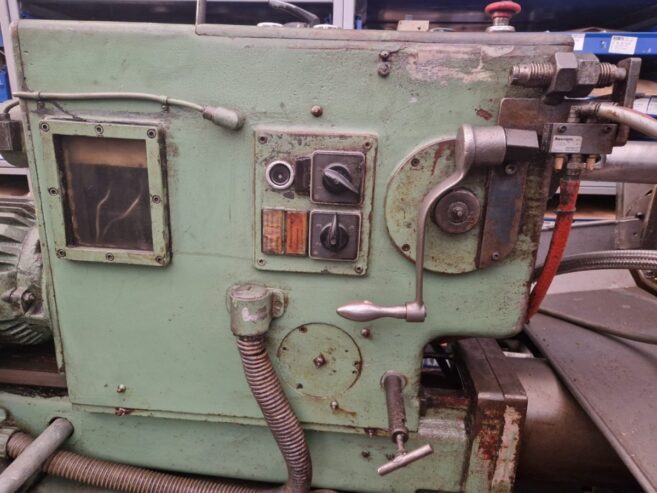

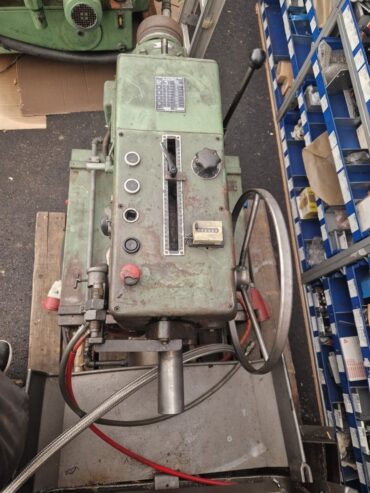

Pillar Drilling Machine
Overview
- Category: Drilling machines
- Brands: Other brands
- Models: BLUTHARDT
- Sub Model: 9535 6BAV-GK
- Year of manufacture: 2025
Description
Machine-Details
| Stock-No. | 2077-40003 |
| Type of machine | Pillar Drilling Machine |
| Make | BLUTHARDT |
| Type | 9535 6BAV-GK |
| Year of manufacture | |
| Type of control | conventional |
| Storage location | Steyr AU |
| Country of origin | |
| Delivery time | immediately |
| Freight basis | ex Warehouse |
Features:
- Technical details
- bore capacity in steel (diameter) 50 mm
- throat 350 mm
- bore stroke 170 mm
- spindle diameter / taper MK 4 mm
- table-size 700 x 600 mm
- column diameter 200 mm
- base plate 400 x 400 mm

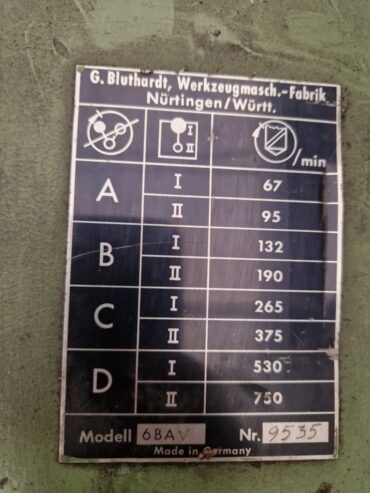

- turning speeds 67 - 750 U/min
- Distance spindle/table max. 770 mm
- feed 0,1 0,16 0,25 0,4 m/min
- total power requirement 3,8 kW
- weight of the machine ca. 0,95 t
- dimensions of the machine ca. 0,7 x 1,1 x 2,6 m
