Roll forming Lines
Overview
- Category: Plate rolling machines
- Brands: Other brands
- Models: DREISTERN
- Sub Model: P802N / P3.080.02
- Year of manufacture: 1994
Description
Technical details
| band width | max 160 mm |
| Band thickness max. | bei (250N/mm²) 0,5 mm |
| stations | 3 |
| speed | 5-15 m/min |
| Tool width max. | 180 |
| Working waves | ø30 |
| total power requirement | 2,2 kW |

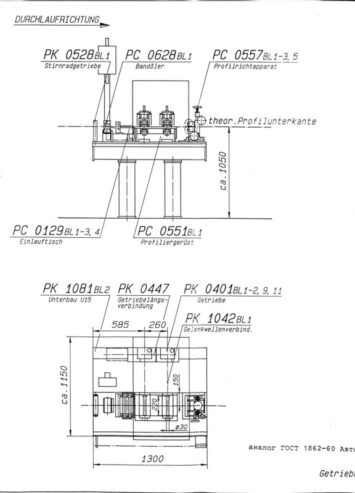

| dimensions of the machine ca. | 1,3 x 1,2 m |
Features:
- Additional information
- Nominal vertical spacing of the working shafts 80mm
- Vertical adjustment of the working shafts
- Upper shaft +60mm
- Lower shaft 0mm
- Horizontal distance of the working shafts 260mm
- Axial adjustment of the working shafts +/- 2.5mm
- Speed ratio lower - upper shaft 1,4:1

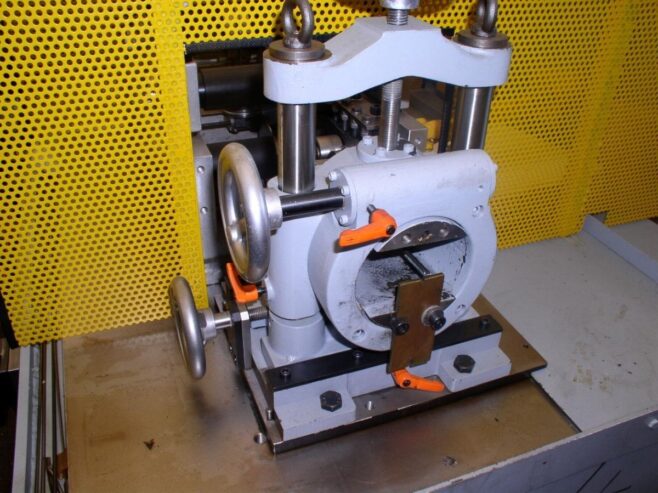

- Passage in the profile straightener
- Width max 95mm
- Height max 30mm
- Working shaft pairs 2 pcs.

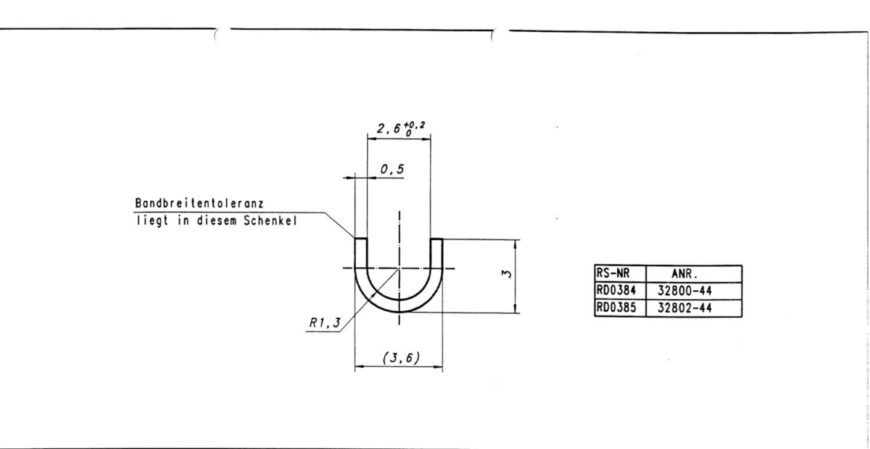

- Tool set for U-profile

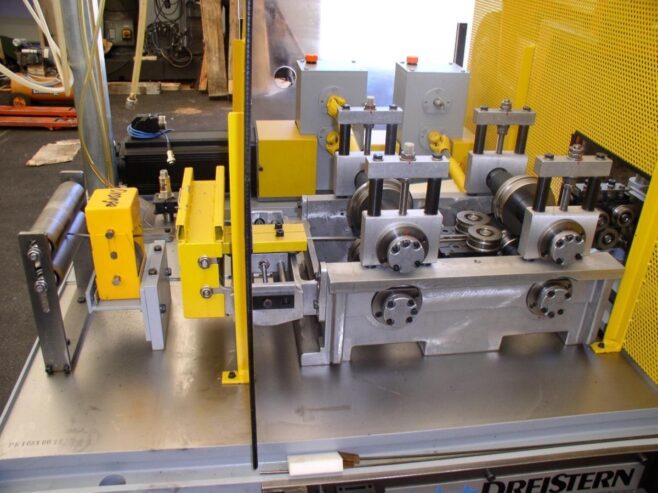

- Profiling machine with 2 stations + straightening station for U-profile
